MPA Trend Dashboard
MPA Trend Dashboard is a multi-symbol analytical indicator for MetaTrader 5 designed to provide a fast overview of market direction across several trading instruments at once. The indicator displays BUY, SELL, or WAIT signals in a compact dashboard directly on the chart and uses a set of popular technical indicators to evaluate the current market condition.
It is suitable for traders who need to monitor several currency pairs, metals, crypto symbols, indices, or CFDs without constantly switching between charts.
Main Concept
MPA Trend Dashboard analyzes selected symbols and shows the signal direction for each instrument. For every symbol, the indicator calculates signals using several technical tools:
MACD RSI Stochastic CCI EMA Trend SuperTrend ADX Bill Williams Alligator
Each signal is shown as:
BUY — bullish signal SELL — bearish signal WAIT — neutral condition or no clear confirmation
This allows traders to quickly identify instruments where several indicators point in the same direction and avoid markets with mixed or uncertain conditions.
Key Features
Multi-symbol signal dashboard The indicator can display up to 9 trading instruments at the same time. By default, it includes EURUSD, GBPUSD, AUDUSD, USDCHF, USDCAD, USDJPY, NZDUSD, XAUUSD, and BTCUSD. The symbol list can be changed in the input settings.
Multiple indicator analysis Each symbol is analyzed using eight technical indicators. This helps evaluate the market based on a combination of trend, momentum, and oscillator conditions.
Any timeframe support The indicator can calculate signals on the current chart timeframe or on a selected working timeframe.
Chart visualization The indicator can display visual elements on the current chart, including EMA lines, SuperTrend, Alligator, and BUY / SELL / WAIT signal markers.
Separate indicator windows When visualization is enabled, MACD, RSI, Stochastic, CCI, and ADX can be displayed in separate chart subwindows.
Flexible settings Users can adjust indicator periods, RSI levels, ADX minimum level, SuperTrend settings, Alligator settings, dashboard colors, and font size.
Alerts The indicator supports pop-up, email, and mobile notifications when signals change.
Strategy Tester optimization FastTestingMode is included to disable unnecessary graphical objects and visual calculations in the Strategy Tester, helping improve testing speed.
Included Indicators
MACD Used to identify momentum direction. If the MACD main line is above the signal line, the indicator shows BUY. If the main line is below the signal line, it shows SELL.
RSI Used to measure market strength. A value above the selected buy level is considered bullish, while a value below the selected sell level is considered bearish.
Stochastic Used to compare the %K and %D lines. If %K is above %D, the signal is BUY. If %K is below %D, the signal is SELL.
CCI Used to measure price deviation from its average. Values above zero generate BUY, while values below zero generate SELL.
EMA Trend Uses three exponential moving averages to define trend structure. If the fast EMA is above the middle EMA and the middle EMA is above the slow EMA, the signal is BUY. If the fast EMA is below the middle EMA and the middle EMA is below the slow EMA, the signal is SELL.
SuperTrend Uses ATR and a multiplier to define trend direction. BUY appears during an upward SuperTrend direction, while SELL appears during a downward SuperTrend direction.
ADX Used to measure trend strength. The signal is considered only when ADX is above the minimum level. If +DI is above -DI, the signal is BUY. If -DI is above +DI, the signal is SELL.
Bill Williams Alligator Uses the classic Jaw, Teeth, and Lips lines. If the lines are in bullish order and price is above the Lips line, the signal is BUY. If the lines are in bearish order and price is below the Lips line, the signal is SELL.
What It Can Be Used For
Quick market overview across multiple instruments Finding symbols with aligned signals Filtering trade ideas before entry Confirming trend direction Visual market monitoring from one chart Forex, metals, indices, crypto, and CFD analysis, depending on broker symbol availability

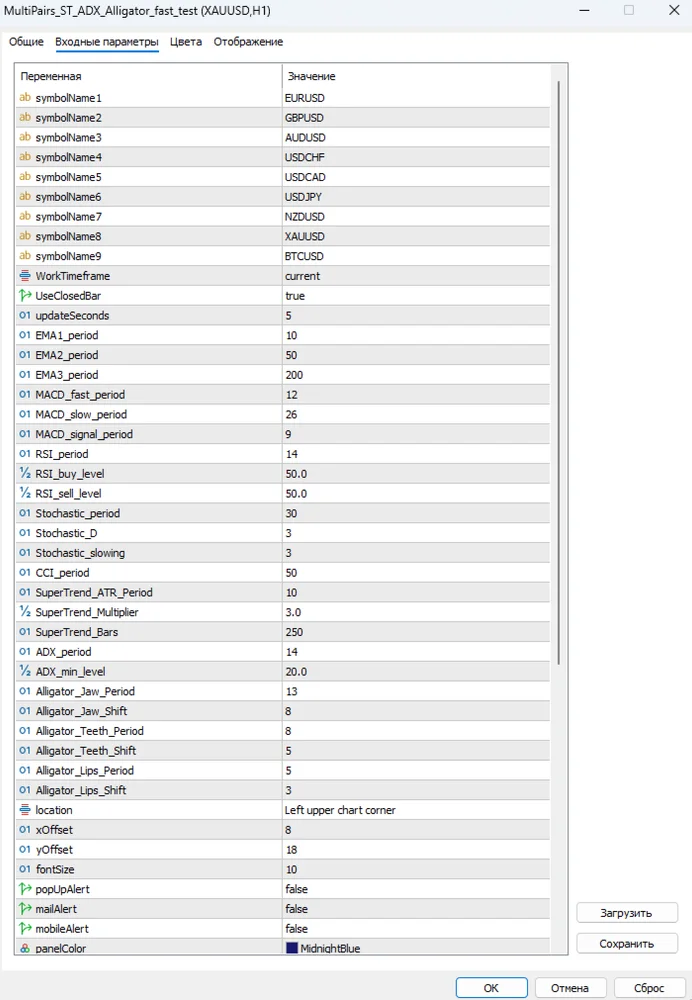

Main Inputs
symbolName1–symbolName9 Trading symbols to analyze.
WorkTimeframe The timeframe used for signal calculations. It can be set to the current chart timeframe.
UseClosedBar If enabled, signals are calculated using the last closed candle. This helps reduce false signal changes during the currently forming candle.
updateSeconds Dashboard update interval.
EMA1_period, EMA2_period, EMA3_period Periods of the three EMAs used for trend analysis.
MACD_fast_period, MACD_slow_period, MACD_signal_period MACD parameters.
RSI_period, RSI_buy_level, RSI_sell_level RSI period and signal levels.
Stochastic_period, Stochastic_D, Stochastic_slowing Stochastic parameters.
CCI_period CCI period.
SuperTrend_ATR_Period, SuperTrend_Multiplier, SuperTrend_Bars SuperTrend parameters.
ADX_period, ADX_min_level ADX period and minimum trend strength level.
Alligator_Jaw_Period, Alligator_Jaw_Shift, Alligator_Teeth_Period, Alligator_Teeth_Shift, Alligator_Lips_Period, Alligator_Lips_Shift Bill Williams Alligator parameters.
ShowDashboard Turns the signal dashboard on or off.
VisualizeAllIndicators Turns chart visualization on or off.
ShowSignalMarkersOnChart Displays BUY / SELL / WAIT signal markers on the chart.
FastTestingMode Improves performance in the Strategy Tester by disabling graphical objects and extra visual calculations.
Usage Recommendations
For more stable signals, it is recommended to keep UseClosedBar enabled. In this mode, the indicator analyzes the last closed candle instead of the currently forming one.
MPA Trend Dashboard is best used as a market direction filter and confirmation tool, not as a standalone trading system. The combination of several indicators helps evaluate market conditions faster, but the final trading decision should always remain with the trader.
For scalping, lower timeframes such as M5 or M15 may be used. For intraday trading, M15, M30, and H1 are suitable. For slower analysis, H4 and D1 can be used.
Advantages
One chart for monitoring multiple instruments Combination of trend, momentum, and oscillator signals Simple BUY / SELL / WAIT display Flexible input settings Optional visualization on the chart Performance mode for faster testing Alert support Suitable for manual trading and market monitoring
Important Notice
MPA Trend Dashboard is not an Expert Advisor and does not open or manage trades automatically. It is an analytical indicator designed to display market signals and support decision-making. It does not guarantee profit and cannot eliminate trading risk. Testing on a demo account is recommended before using it on a live account.
MPA Trend Dashboard — Multi-Symbol Signal Indicator for MetaTrader 5
